We deal in exclusive range of Coating Thickness
Gaugewhich is known for high quality and durability.

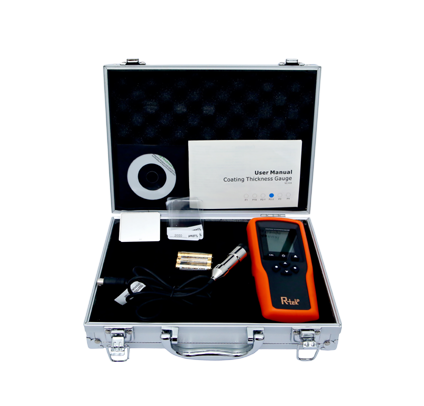

This compact gauge can be used for non - destructive coating
thickness measurement of non - magnetic coatings , e.g. paint, enamel ,
chrome on steel , and insulating coatings, e.g. paint and anodizing
coatings on non - ferrous metals.
The internal probe can work on both principles , magnetic induction (
Probe F ) and the eddy currents ( Probe N ) . The probe can
automatically detect the substrates type ( Magnetic or not ) , and
calculate the coating thickness and display it fast.
Including F and N Probe
128*128 Dot Matrix LCD Display and Menu Interface
Easy to Do Zero Calibration and Multi-Point Calibration
Readings Can Be Stored, Recalled and Deleted
Connect with PC via USB and Support Analysis Software
Two Measure Mode: Single and Continuous
Two Group Mode : Direct ( DIR ) and General ( GEN )
User can Set High or Low Limit Alarm for each Group
Measuring Range : 1.2~220mm (Steel)
Accuracy : ± ( 1 % H + 0.1 ) mm
Resolution : 0.1 mm
Sound Velocity Range : 1000 ~ 9999 m/s
Work Frequency : 5MHz
Minimum Limit For Tube Measuring : ¢ 20*3 mm (Steel)
