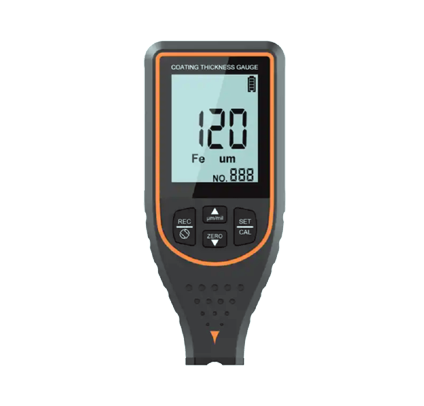

RK - 770 Digital Coating Thickness Gauge

Home / Our Products / NDT & Testing Instruments / Coating Thickness Gauge / RK-770

We are among the reputed names in the industry. We are successfully meeting the requirements of our clients by offering the best quality range of Coating Thickness Gauge. The offered Coating Thickness Gauge are manufactured as per a standard design using premium quality materials and sophisticated technology. Offering accurate results, these Coating Thickness Gauge are highly appreciated by the customers. We make these Coating Thickness Gauge available at standard market prices.

Specifications

Measuring:
- Magnetic material 0-1700µm
- Nonmagnetic material 0-1700µm
Resolution :
- O.lµm@ (0-99.9µm)
- lµm@ (100-1700µm)
Indication error:
- (2+2%*H)µm @ (0-500µm)
- +(2.5% "H) µm @ (500~1700µm)
Min measuring_area :
- Magnetic material 25x25mm,
- Non magnetic material 25x25mm
Min curvature: Convexity 5mm; concave 30mm
Min substrate thickness:
- Magnetic material 0.2mm;
- Non magnetic material0.05mm
Screen: Segment screen
Memory: 30 sets
Battery specification : 2x1.5V AAA
Working temp and humidity: O°C~50°C, 10%~80%RH
Storage temp and humidity : -10°C~60°C, 10%-70%RH
Dimension: 120x52x27mm
